MLX-Gen local examples

This page records the current bundled proof runs for the MLX-Gen backend in AbstractVision.

All assets referenced here were generated through AbstractVision with mlx-gen 0.18.19 and copied into docs/assets/mlx-gen-lora-examples/.

What this page validates

• AbstractVision uses one shared LoRA adapter contract across text_to_image, image_to_image, text_to_video, and image_to_video: LoRAAdapterSpec(...) / lora_adapters=[...].
• The same surface supports base runs, single-adapter runs, and stacked-adapter runs.
• AbstractVision exposes a simple public batch surface above the exact single-request dataclasses: generate_image_batch(...), edit_image_batch(...), generate_video_batch(...), and image_to_video_batch(...), plus CLI --count / --seeds.
• Provider-model discovery surfaces route truth through supports_lora, lora_status, lora_target_roles, and lora_validation_profile.
• Installed adapter discovery is backend-owned and lists optional overlays only; full-model component files are excluded from the adapter inventory.
• The MLX-Gen surface exposes route-aware Qwen masked edit and structured control through typed request fields instead of extra-only escape hatches.
• The public TI2V-5B visual proofs in this bundle use 832x480.
• The public task-specific Wan A14B proofs in this bundle use 480x240.
• The LoRA-heavy proof runs on this page use curated 8-bit MLX-Gen routes. For local Qwen and Wan Lightning work, q8 is the preferred prepared route when memory allows; q4 remains available for tighter memory budgets.
• The current AbstractVision MLX runtime floor is mlx-gen>=0.18.19,<0.19.0.

This package release is validated on Apple Silicon first. The MLX-Gen install extra also exposes the upstream Linux/CUDA path when mlx[cuda13] markers apply, but the proof assets on this page are Apple validations.

Install and discovery

Install the MLX-Gen extra:

pip install "abstractvision[mlx-gen]"

Inspect the local MLX-Gen catalog before long runs:

abstractvision catalog --provider mlx-gen
abstractvision show-model AbstractFramework/qwen-image-edit-2509-8bit
abstractvision show-model AbstractFramework/wan2.2-ti2v-5b-diffusers-8bit
abstractvision show-model AbstractFramework/wan2.2-t2v-a14b-diffusers-8bit
abstractvision adapters --provider mlx-gen --model AbstractFramework/qwen-image-edit-2509-8bit --task image_to_image
abstractvision adapters --provider mlx-gen --model AbstractFramework/wan2.2-ti2v-5b-diffusers-8bit --task text_to_video
abstractvision adapters --provider mlx-gen --model AbstractFramework/wan2.2-i2v-a14b-diffusers-8bit --task image_to_video

Use catalog to browse downloadable models. Use show-model when you need the exact runtime route contract, including default parameters such as flow_shift. Use adapters when you need locally cached overlays that match one route.

If you manually experiment outside the curated AbstractVision routes, note the upstream LightX2V Qwen Lightning guidance: do not pair a BF16-trained Qwen Lightning LoRA with the raw unscaled FP8 Qwen base (qwen_image_fp8_e4m3fn.safetensors). That upstream mix can produce grid artifacts. Reference: https://github.com/ModelTC/LightX2V-Qwen-Image-Lightning#-using-lightning-loras-with-fp8-models

Bundled discovery artifacts:

• provider_adapters_qwen2512_t2i.json
• provider_adapters_qwen2509_i2i.json
• provider_adapters_wan_ti2v_t2v.json
• provider_adapters_wan_a14b_t2v.json
• provider_adapters_wan_a14b_i2v.json
• show_model_wan_ti2v_5b.txt
• show_model_wan_a14b_t2v.txt
• summary.json

Route-aware Qwen extras

The public request surface exposes the validated Qwen MLX-Gen extras directly:

• masked edit: abstractvision i2i --provider mlx-gen --model AbstractFramework/qwen-image-edit-2511-8bit --image ./input.png --mask ./mask.png "repair the marked area"
• structured control: abstractvision t2i --provider mlx-gen --model AbstractFramework/qwen-image-8bit --control-image ./edges.png --control-strength 0.9 "pagoda at sunrise"

Those inputs fail closed when the selected route does not advertise the matching runtime capability. 0.85 is the packaged default when --control-strength is omitted; 0.9 above matches the current upstream proof setting rather than the default.

Shared adapter contract

In Python, use the typed request surface:

from abstractvision import LoRAAdapterSpec, VisionManager
from abstractvision.backends import MLXGenBackendConfig, MLXGenVisionBackend

backend = MLXGenVisionBackend(
    config=MLXGenBackendConfig(model="AbstractFramework/qwen-image-2512-8bit")
)
t2i = VisionManager(backend=backend, model_id="AbstractFramework/qwen-image-2512-8bit")
assets = t2i.generate_image_batch(
    "Pixel art isometric research outpost on an icy exoplanet at blue hour",
    count=2,
    seeds=[2512, 2513],
    width=768,
    height=768,
    steps=20,
    guidance_scale=5.0,
    lora_adapters=[
        LoRAAdapterSpec(
            source="prithivMLmods/Qwen-Image-2512-Pixel-Art-LoRA:Qwen-Image-2512-Master-Pixel-Art-LoRA.safetensors",
            scale=1.0,
        )
    ],
)

edit_backend = MLXGenVisionBackend(
    config=MLXGenBackendConfig(model="AbstractFramework/qwen-image-edit-2509-8bit")
)
i2i = VisionManager(backend=edit_backend, model_id="AbstractFramework/qwen-image-edit-2509-8bit")
edited = i2i.edit_image(
    "Re-render the same vehicle from behind and slightly above.",
    image=open("./input.png", "rb").read(),
    steps=8,
    guidance_scale=1.0,
    lora_adapters=[
        LoRAAdapterSpec(
            source="lightx2v/Qwen-Image-Lightning:Qwen-Image-Edit-2509/Qwen-Image-Edit-2509-Lightning-8steps-V1.0-bf16.safetensors",
            scale=1.0,
        ),
        LoRAAdapterSpec(
            source="dx8152/Qwen-Edit-2509-Multiple-angles:镜头转换.safetensors",
            scale=0.9,
        ),
    ],
)

In the CLI, the equivalent surface is repeated --lora* flags. Passing no LoRA flags keeps the base-model route. Passing one or more adapter flags stacks them in order.

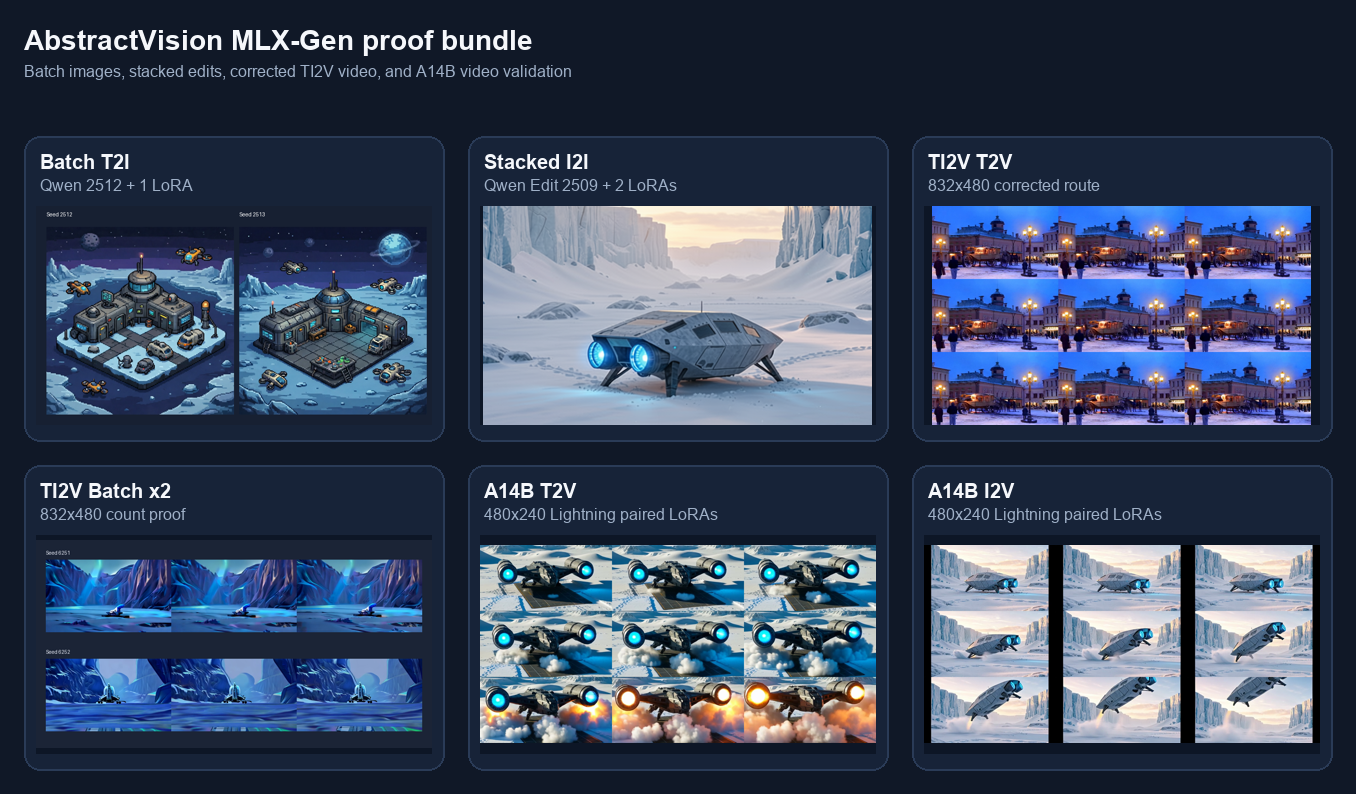

Proof bundle

The proof manifest for the runs below is summary.json.

Proof	Model	Feature exercised	Output
Batch T2I x2	AbstractFramework/qwen-image-2512-8bit	--count 2, explicit seeds, one LoRA	contact sheet
Stacked I2I	AbstractFramework/qwen-image-edit-2509-8bit	two LoRAs stacked on one edit run	input / PNG
TI2V visual proof	AbstractFramework/wan2.2-ti2v-5b-diffusers-8bit	validated 832x480 TI2V LoRA route	MP4 / contact sheet
Batch T2V x2	AbstractFramework/wan2.2-ti2v-5b-diffusers-8bit	--count 2, explicit seeds, zero LoRAs	contact sheet
A14B T2V	AbstractFramework/wan2.2-t2v-a14b-diffusers-8bit	task-specific route, paired Lightning LoRAs	MP4 / contact sheet
A14B I2V	AbstractFramework/wan2.2-i2v-a14b-diffusers-8bit	task-specific route, paired Lightning LoRAs	input / MP4

The public first-frame image_to_video proof in this bundle uses the task-specific Wan A14B route. TI2V-5B image_to_video remains supported through the same runtime surface, but the bundle keeps only the validated public proofs that held up visually at the supported sizes.

Exact commands used

Batch text to image: Qwen Image 2512 + pixel-art LoRA

PYTHONPATH=src python -m abstractvision.cli t2i \
  --provider mlx-gen \
  --model AbstractFramework/qwen-image-2512-8bit \
  --store-dir <store> \
  --width 768 \
  --height 768 \
  --steps 20 \
  --guidance-scale 5.0 \
  --count 2 \
  --seeds 2512,2513 \
  --lora prithivMLmods/Qwen-Image-2512-Pixel-Art-LoRA:Qwen-Image-2512-Master-Pixel-Art-LoRA.safetensors \
  --lora-scale 1.0 \
  --progress \
  "Pixel art isometric research outpost on an icy exoplanet at blue hour, tiny service drones, crisp tiles, retro RPG palette"

Outputs:

• seed 2512
• seed 2513
• progress log

Image to image: Qwen Image Edit 2509 + stacked LoRAs

PYTHONPATH=src python -m abstractvision.cli i2i \
  --provider mlx-gen \
  --model AbstractFramework/qwen-image-edit-2509-8bit \
  --store-dir <store> \
  --image ./input.png \
  --steps 8 \
  --guidance-scale 1.0 \
  --seed 9701 \
  --lora lightx2v/Qwen-Image-Lightning:Qwen-Image-Edit-2509/Qwen-Image-Edit-2509-Lightning-8steps-V1.0-bf16.safetensors \
  --lora dx8152/Qwen-Edit-2509-Multiple-angles:镜头转换.safetensors \
  --lora-scale 1.0 \
  --lora-scale 0.9 \
  --progress \
  "Use the source starfighter as the same object. Re-render it from behind and slightly above, banking left over the snowy canyon, keeping the same vehicle identity and environment."

Artifacts:

• input image
• edited image
• metadata
• progress log

Text to video: TI2V-5B + HSToric LoRA at 832x480

HF_HUB_OFFLINE=1 PYTHONPATH=src python -m abstractvision.cli t2v \
  --provider mlx-gen \
  --model AbstractFramework/wan2.2-ti2v-5b-diffusers-8bit \
  --store-dir <store> \
  --width 832 \
  --height 480 \
  --frames 17 \
  --steps 20 \
  --guidance-scale 4.0 \
  --flow-shift 3.0 \
  --fps 16 \
  --seed 6301 \
  --lora AlekseyCalvin/HSToric_Color_Wan2.2_5B_LoRA_BySilverAgePoets:HSToric_color_Wan22_5b_LoRA.safetensors \
  --lora-target-role transformer \
  --lora-scale 0.8 \
  --progress \
  "HST style HD film, early 1900s, autochrome, analog cinema. A horse-drawn carriage crossing a snowy town square at dusk, pedestrians in wool coats, historical street lamps glowing, gentle cinematic motion."

Progress proof: t2v_wan_ti2v5b_hstoric_832x480.progress.log

Batch text to video: TI2V-5B x2

HF_HUB_OFFLINE=1 PYTHONPATH=src python -m abstractvision.cli t2v \
  --provider mlx-gen \
  --model AbstractFramework/wan2.2-ti2v-5b-diffusers-8bit \
  --store-dir <store> \
  --width 832 \
  --height 480 \
  --frames 9 \
  --steps 8 \
  --guidance-scale 4.0 \
  --flow-shift 3.0 \
  --fps 8 \
  --count 2 \
  --seeds 6251,6252 \
  --progress \
  "A compact silver spaceship rests in a frozen canyon at dawn. Blue engines begin to glow, loose snow drifts across the landing pad, and the camera holds a stable wide composition with gentle atmospheric motion."

Artifacts:

• seed 6251 MP4
• seed 6252 MP4
• contact sheet
• progress log

Text to video: task-specific Wan A14B + Lightning pair at 480x240

HF_HUB_OFFLINE=1 PYTHONPATH=src python -m abstractvision.cli t2v \
  --provider mlx-gen \
  --model AbstractFramework/wan2.2-t2v-a14b-diffusers-8bit \
  --store-dir <store> \
  --negative "oversaturated colors, overexposed, static shot, blurry details, subtitles, text, watermark, painting, illustration, ugly, deformed, broken anatomy, extra limbs, cluttered background, frozen frame, low quality, jpeg artifacts" \
  --width 480 \
  --height 240 \
  --frames 41 \
  --steps 4 \
  --guidance-scale 1 \
  --guidance-2 1 \
  --flow-shift 5 \
  --fps 20 \
  --seed 8401 \
  --lora lightx2v/Wan2.2-Lightning:Wan2.2-T2V-A14B-4steps-lora-rank64-Seko-V1.1/high_noise_model.safetensors \
  --lora lightx2v/Wan2.2-Lightning:Wan2.2-T2V-A14B-4steps-lora-rank64-Seko-V1.1/low_noise_model.safetensors \
  --lora-target-role high_noise_transformer \
  --lora-target-role low_noise_transformer \
  --lora-scale 1 \
  --lora-scale 1 \
  --progress \
  "A cinematic wide-angle movie shot of a massive futuristic starship taking off from a frozen tundra. The ship features sleek dark metallic armor. Two massive warp nacelles pulse with bright blue plasma. Violent snow squalls whip around the hull. The camera slowly tilts up as the thrusters ignite and massive clouds of snow blast away from the launch pad. Photorealistic, highly detailed, dramatic lighting."

Progress proof: t2v_wan_a14b_lightning_480x240.progress.log

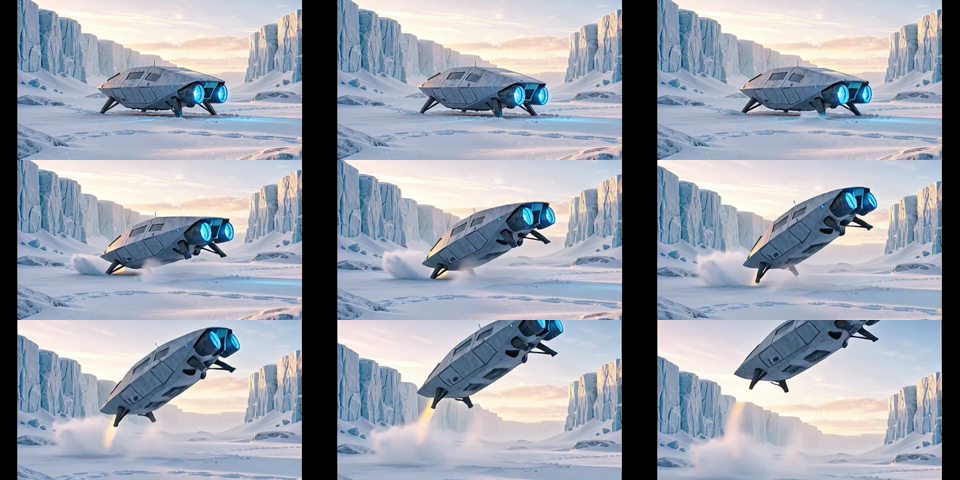

Image to video: task-specific Wan A14B + Lightning pair at 480x240

HF_HUB_OFFLINE=1 PYTHONPATH=src python -m abstractvision.cli i2v \
  --provider mlx-gen \
  --model AbstractFramework/wan2.2-i2v-a14b-diffusers-8bit \
  --store-dir <store> \
  --image ./input.png \
  --negative "oversaturated colors, overexposed, static shot, blurry details, subtitles, text, watermark, painting, illustration, ugly, deformed, broken anatomy, extra limbs, cluttered background, frozen frame, low quality, jpeg artifacts" \
  --width 480 \
  --height 240 \
  --frames 41 \
  --steps 4 \
  --guidance-scale 1 \
  --guidance-2 1 \
  --flow-shift 5 \
  --fps 20 \
  --seed 8402 \
  --lora lightx2v/Wan2.2-Lightning:Wan2.2-I2V-A14B-4steps-lora-rank64-Seko-V1/high_noise_model.safetensors \
  --lora lightx2v/Wan2.2-Lightning:Wan2.2-I2V-A14B-4steps-lora-rank64-Seko-V1/low_noise_model.safetensors \
  --lora-target-role high_noise_transformer \
  --lora-target-role low_noise_transformer \
  --lora-scale 1 \
  --lora-scale 1 \
  --progress \
  "Starting from the input image, the silver spaceship powers up and lifts off from the frozen ground. Blue engines brighten, snow blasts outward, vapor rolls under the hull, and the camera holds the same wide icy canyon framing while the ship rises smoothly."

Source image:

Progress proof: i2v_wan_a14b_lightning_480x240.progress.log

Progress semantics

The bundled logs show the normalized MLX-Gen semantics that AbstractVision preserves:

• image generation and image edit report denoise-step progress (0/20, 1/20, ..., 20/20, complete);
• video generation reports denoise-step progress while keeping frame counts as context (1/20 denoise frame 0/17, ..., 20/20 decode, convert, generated).

That is the progress contract AbstractVision forwards to Python callers, the AbstractCore plugin, and higher-level runtime and gateway consumers.
