Image And Video Upscaling

MLX-Gen routes SeedVR2 image and video restoration through mlxgen upscale. SeedVR2 is a diffusion restoration/upscaling model: it can increase pixel dimensions while reconstructing detail and smoothing low-resolution or compressed artifacts. It does not require a text prompt.

The older mflux-upscale-seedvr2 entry point remains available for compatibility. New examples use mlxgen upscale.

Video Restoration

Video restoration uses the same command with --video-path instead of --image-path. MLX-Gen preserves the source clip FPS by default, trims temporary SeedVR2 padding back to the requested clip length, and preserves the matching source audio segment by default when the source clip has audio. If MLX-Gen cannot prove that copied audio is still aligned safely, the run fails instead of publishing a silent output unexpectedly. Use --drop-audio only when you intentionally want a silent restored MP4.

The public safe video profile is conservative by design:

• if you omit --resolution, video restore defaults to 1x;
• MLX-Gen enables --low-ram automatically for video inputs;
• --mlx-cache-limit-gb 8 is an MLX cache setting, not a total process-memory cap;
• the CLI uses sequential temporal chunking for video instead of the bounded in-memory direct path;
• enlarged video output profiles are rejected in safe mode unless you pass --force-unsafe-video-memory.

--vae-tiling is for image runs only and is rejected on video input.

Audio Copy-Through

SeedVR2 video restore uses one shared post-write audio path for bounded and streamed outputs.

• audio_present records whether the source clip had audio.
• audio_copied records whether MLX-Gen kept the matching source segment.
• audio_copy_mode records the successful mux path.
• audio_copy_reason records why a saved output has no copied audio, for example drop_audio_requested, no_source_audio, or in_memory_output.

The shipped route uses ffmpeg for sync-safe muxing. If ffmpeg is not available on PATH, or if the written MP4 duration no longer matches the bounded source window closely enough, MLX-Gen fails the run instead of silently dropping audio. Pass --drop-audio when a silent MP4 is the intended output.

Accepted published proof bundle:

• Air France source excerpt
• Air France copied-audio output
• Air France stream report
• Air France audio-copy report
• Air France command log

Useful option:

• --drop-audio: opt out of the default audio-preservation contract and publish a silent restored MP4 intentionally.

Reader-First Validation Rule

MLX-Gen now treats five contiguous seconds as the minimum public-quality proof for SeedVR2 video. Sub-second clips are still useful for local diagnostics, but they are not enough to judge cadence, time dilation, or motion distortion. See ADR 0005.

For the checked-in Eiffel archival proof, the accepted reader-first slice is:

• source video: Panorama of the Eiffel Tower in 1900 Thomas Edison Vintage Video.mp4
• clip window: 70.0s to 75.0s
• source geometry: 320x240
• source duration under test: 149 frames at 29.97 fps (4.972s)

Set the source file path once:

SOURCE_VIDEO="Panorama of the Eiffel Tower in 1900 Thomas Edison Vintage Video.mp4"

Run the accepted safe bounded 1x proof with the official source checkpoints:

mlxgen upscale \
  --model ByteDance-Seed/SeedVR2-3B \
  --video-path "$SOURCE_VIDEO" \
  --start-seconds 70 \
  --max-frames 149 \
  --resolution 1x \
  --softness 0.0 \
  --color-correction wavelet \
  --temporal-chunk-size 29 \
  --temporal-chunk-overlap 8 \
  --low-ram \
  --mlx-cache-limit-gb 8 \
  --metadata \
  --output eiffel_70s_149f_3b_chunk29_overlap8_wavelet_1x_after_causal_slicing.mp4

mlxgen upscale \
  --model ByteDance-Seed/SeedVR2-7B \
  --video-path "$SOURCE_VIDEO" \
  --start-seconds 70 \
  --max-frames 149 \
  --resolution 1x \
  --softness 0.0 \
  --color-correction wavelet \
  --temporal-chunk-size 29 \
  --temporal-chunk-overlap 8 \
  --low-ram \
  --mlx-cache-limit-gb 8 \
  --metadata \
  --output eiffel_70s_149f_7b_chunk29_overlap8_wavelet_1x_after_causal_slicing.mp4

Run the accepted enlarged 2x comparison only after the 1x slice looks right on the same clip:

mlxgen upscale \
  --model ByteDance-Seed/SeedVR2-3B \
  --video-path "$SOURCE_VIDEO" \
  --start-seconds 70 \
  --max-frames 149 \
  --resolution 2x \
  --softness 0.0 \
  --color-correction wavelet \
  --temporal-chunk-size 29 \
  --temporal-chunk-overlap 8 \
  --low-ram \
  --mlx-cache-limit-gb 8 \
  --force-unsafe-video-memory \
  --metadata \
  --output eiffel_70s_149f_3b_chunk29_overlap8_wavelet_2x_after_causal_slicing.mp4

mlxgen upscale \
  --model ByteDance-Seed/SeedVR2-7B \
  --video-path "$SOURCE_VIDEO" \
  --start-seconds 70 \
  --max-frames 149 \
  --resolution 2x \
  --softness 0.0 \
  --color-correction wavelet \
  --temporal-chunk-size 29 \
  --temporal-chunk-overlap 8 \
  --low-ram \
  --mlx-cache-limit-gb 8 \
  --force-unsafe-video-memory \
  --metadata \
  --output eiffel_70s_149f_7b_chunk29_overlap8_wavelet_2x_after_causal_slicing.mp4

29/8 means:

• restore 29 source frames per chunk;
• reuse 8 source frames as context between adjacent chunks;
• do not crossfade output frames together.

This matters because the overlap is there to keep the model temporally grounded, not to blend two different restored outputs into one display frame.

Color-Correction Labels

The CLI values stay short, but the meanings are:

CLI value	Reader-first label	What it does
wavelet	Wavelet tone reconstruction	Restores detail, then reuses the source clip's broad low-frequency tone structure. This is the current default and the accepted Eiffel proof mode.
lab	LAB tone matching	Matches the restored output back toward the source in perceptual LAB space. Usually a bit more conservative than wavelet.
off	Raw model output	Leaves the restored output untouched by tone/color post-processing.

On monochrome archival footage, these are really tone-matching choices more than ordinary color choices.

Accepted Proof Bundle

Reader-first report and reproduction files:

• Validation report
• Command log
• Timing and memory stats

Safe 1x bounded proof:

• 3B 1x restored video
• 7B 1x restored video
• 1x comparison video
• 1x contact sheet
• 1x mid-clip motion strip
• 1x tail motion strip
• 1x metrics JSON

Enlarged 2x bounded proof:

• 3B 2x restored video
• 7B 2x restored video
• 2x comparison video
• 2x contact sheet
• 2x moving-crowd motion strip
• 2x tail motion strip
• 2x crowd detail crop
• 2x metrics JSON

Supported Public Proof Profiles

Accepted public profiles for this exact archival slice:

• safe bounded 1x 29/8 wavelet for 3B and 7B
• explicit enlarged 2x 29/8 wavelet for 3B and 7B

Current guidance:

• 1x 29/8 is the default public video proof surface for route correctness, frame integrity, and motion continuity;
• 3B 1x 29/8 is crisper on this native archival slice, while 7B 1x 29/8 is smoother and less drift-prone;
• 2x 29/8 is the stronger visual comparison regime on this clip, and 7B 2x 29/8 result is slightly cleaner and more stable than 3B 2x 29/8.

Supporting metrics on the accepted proofs, after downscaling each candidate back to the original 320x240 source resolution before scoring:

• 3B 1x 29/8: sharpness_gain 1.5240, contrast_gain 1.1046, temporal_ratio 1.5097, drift_mae 0.056926, heuristic_score 58.65
• 7B 1x 29/8: sharpness_gain 1.2258, contrast_gain 1.0682, temporal_ratio 1.2874, drift_mae 0.041031, heuristic_score 60.72
• 3B 2x 29/8: sharpness_gain 1.4096, contrast_gain 1.0504, temporal_ratio 1.3493, drift_mae 0.035856, heuristic_score 61.63
• 7B 2x 29/8: sharpness_gain 1.4176, contrast_gain 1.0523, temporal_ratio 1.3563, drift_mae 0.033749, heuristic_score 62.57

These metrics are supporting evidence only. The comparison MP4 and motion/crop sheets are the primary quality proof.

Measured on an Apple M5 Max with 128 GB unified memory for the accepted 29/8 proofs:

• 3B 1x 29/8: generation_time 71.33s, wall_time 74.54s, peak_mlx 14.55 GB, max_rss 27.40 GB
• 7B 1x 29/8: generation_time 107.44s, wall_time 112.93s, peak_mlx 24.54 GB, max_rss 66.18 GB
• 3B 2x 29/8: generation_time 539.03s, wall_time 542.30s, peak_mlx 34.40 GB, max_rss 27.40 GB
• 7B 2x 29/8: generation_time 454.46s, wall_time 460.61s, peak_mlx 44.27 GB, max_rss 66.18 GB

Peak MLX memory and max RSS are different measurements. Peak MLX tracks allocator activity inside MLX. Max RSS tracks the full process footprint seen by the OS.

Practical guidance:

• use --start-seconds and --max-frames to validate a real five-second slice before longer runs;
• start with the safe 1x 29/8 profile and --softness 0.0 when the goal is archival restoration rather than enlargement;
• use 2x 29/8 only after the same slice looks correct at 1x, because enlarged proof is an explicit unsafe-memory run;
• use wavelet first, then compare lab and off only if tone matching looks wrong on the actual clip;
• judge the MP4 and motion-strip output directly instead of trusting one heuristic score;
• prefer visibly degraded, noisy, low-resolution, or compressed footage for restoration proofs;
• treat already-clean high-resolution footage as a harder fit. In local testing, SeedVR2 could over-smooth modern native-resolution clips instead of improving them.

5x Example

The included example starts from a 133x113 JPEG and generates a 658x560 PNG with the published AbstractFramework/seedvr2-3b-8bit package:

mlxgen download --model AbstractFramework/seedvr2-3b-8bit

mlxgen upscale \
  --model AbstractFramework/seedvr2-3b-8bit \
  --image-path docs/assets/upscaling/seedvr2-5x-source.jpg \
  --resolution 5x \
  --seed 42 \
  --metadata \
  --output seedvr2-5x-output.png

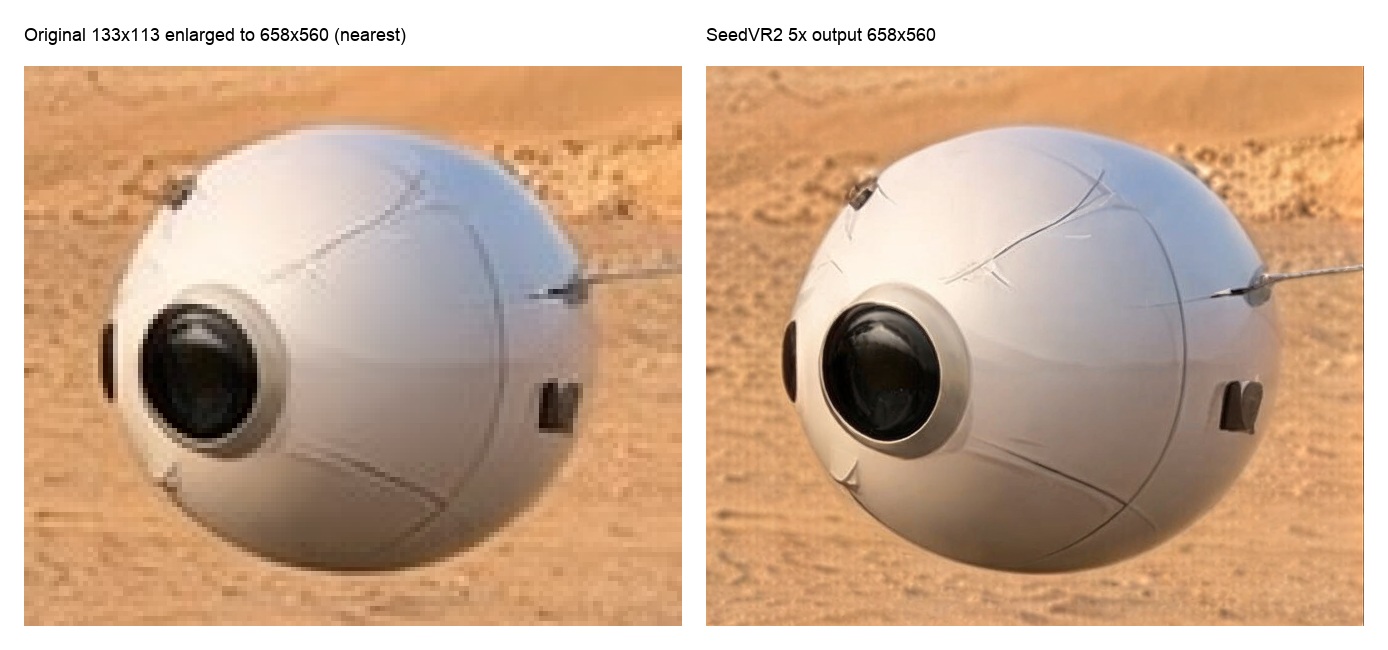

The left panel below shows the original source enlarged to the same 658x560 resolution with nearest-neighbor resizing. The right panel is the SeedVR2 output generated by the command above.

The source and generated output are also included separately:

• seedvr2-5x-source.jpg
• seedvr2-5x-output.png

Published Packages

For regular 3B use, prefer the reusable AbstractFramework packages:

mlxgen download --model AbstractFramework/seedvr2-3b-8bit
mlxgen download --model AbstractFramework/seedvr2-3b-4bit

Then pass the selected package to mlxgen upscale:

mlxgen upscale \
  --model AbstractFramework/seedvr2-3b-8bit \
  --image-path input.png \
  --resolution 2x \
  --seed 42 \
  --metadata \
  --output input_seedvr2_3b_q8_2x.png

The 3B packages are generated from the official ByteDance-Seed/SeedVR2-3B source model. They use MLX-Gen's saved-weight layout and are intended for MLX-Gen, not Diffusers or Transformers from_pretrained() loading. The q8 package is the closest low-memory option to the source path; the q4 package is smaller and passed the included 5x validation profile.

The 7B section below includes a combined 3B/7B contact sheet using the same source image and 5x profile for direct comparison across source, q8, and q4 outputs.

SeedVR2 7B

The seedvr2-7b and seedvr2-7b-sharp aliases both resolve to the official ByteDance-Seed/SeedVR2-7B source repository:

mlxgen download --model ByteDance-Seed/SeedVR2-7B

mlxgen upscale \
  --model seedvr2-7b \
  --image-path input.png \
  --resolution 2x \
  --seed 42 \
  --metadata \
  --output input_seedvr2_7b_2x.png

To use the sharper official checkpoint directly:

mlxgen upscale \
  --model seedvr2-7b-sharp \
  --image-path input.png \
  --resolution 2x \
  --seed 42 \
  --metadata \
  --output input_seedvr2_7b_sharp_2x.png

You can prepare reusable local q8/q4 packages from the official 7B source:

mlxgen prepare \
  --model ByteDance-Seed/SeedVR2-7B \
  --path ./models/seedvr2-7b-8bit \
  --quantize 8

mlxgen prepare \
  --model ByteDance-Seed/SeedVR2-7B \
  --path ./models/seedvr2-7b-4bit \
  --quantize 4

The same package layout is used for the AbstractFramework 7B q8/q4 packages:

mlxgen download --model AbstractFramework/seedvr2-7b-8bit
mlxgen download --model AbstractFramework/seedvr2-7b-4bit

Run from a local or downloaded 7B package with the same command:

mlxgen upscale \
  --model ./models/seedvr2-7b-8bit \
  --image-path input.png \
  --resolution 2x \
  --seed 42 \
  --metadata \
  --output input_seedvr2_7b_q8_2x.png

The 7B source, q8 package, and q4 package passed the same checked-in 5x profile used for 3B. The sheet below stacks the 3B and 7B results so you can compare detail reconstruction directly:

Model Sources

The short aliases seedvr2 and seedvr2-3b resolve to the official upstream 3B checkpoint:

mlxgen download --model ByteDance-Seed/SeedVR2-3B

mlxgen upscale \
  --model ByteDance-Seed/SeedVR2-3B \
  --image-path input.png \
  --resolution 2x \
  --seed 42 \
  --metadata \
  --output input_seedvr2_official_3b_2x.png

Runtime quantization also works on the official source path:

mlxgen upscale \
  --model ByteDance-Seed/SeedVR2-3B \
  --image-path input.png \
  --resolution 2x \
  --seed 42 \
  --quantize 8 \
  --metadata \
  --output input_seedvr2_official_3b_q8_2x.png

Use --quantize 4 the same way for a q4 runtime check. Runtime quantization loads the official checkpoint first, then quantizes applicable MLX modules in memory. Published q8/q4 packages skip that source-load step and are smaller on disk.

To create your own local package from the official source:

mlxgen prepare \
  --model ByteDance-Seed/SeedVR2-3B \
  --path ./models/seedvr2-3b-8bit \
  --quantize 8

Use ByteDance-Seed/SeedVR2-7B and a seedvr2-7b-* path for 7B packages.

Sizing

--resolution accepts either an integer shorter-edge target or a scale factor:

Form	Meaning	Example
--resolution 1024	Preserve aspect ratio and set the shorter output edge near 1024px.	A 640x384 image becomes about 1706x1024 after normalization.
--resolution 2x	Preserve aspect ratio and scale the source by about 2x.	A 320x192 image becomes 640x384.
--resolution 5x	Preserve aspect ratio and scale the source by about 5x.	The included 133x113 source becomes 658x560.

Image restoration preserves the requested geometry exactly: --resolution 1x returns the input dimensions pixel-for-pixel with no resampling, and integer shorter-edge targets keep the exact source aspect ratio. Network divisibility is satisfied internally with reflective edge padding that is cropped away after decoding, never by snapping or resizing the output. Video restoration center-crops each frame to the nearest multiple of 16, matching the official SeedVR2 pipeline. Metadata sidecars record the source size, requested resolution, and final output size.

Quality Controls

For visual upscaling checks, choose a target that materially increases pixel dimensions. A target close to the source size can be useful for restoration or denoising checks, but it is not a strong proof of super-resolution.

Useful options:

Option	Use
--quantize 8	Runtime q8 quantization for the SeedVR2 model.
--steps 1 to 4	Force a fixed step count for image restoration. Default is automatic: single step, plus a measured 4-step refinement only when the one-step noise texture is detected.
--softness 0.25 to 0.5	Smooth noisy low-resolution conditioning before reconstruction.
--vae-tiling	Force tiled VAE encode/decode for image runs. Video restore rejects it.
--color-correction wavelet	Preferred long-video restore color mode on the checked-in Eiffel archival proof.
--temporal-chunk-size / --temporal-chunk-overlap	Tune long-video memory use and overlap context. The checked-in Eiffel production proof used 29 and 8; smaller multi-chunk profiles are rejected to protect temporal continuity.
--low-ram --mlx-cache-limit-gb 8	Recommended long-video restore profile when memory pressure matters.
--metadata	Save a .metadata.json sidecar with source/output dimensions and generation settings.
--start-seconds / --max-frames	For video inputs, bound the decoded source clip before restoration.

--softness controls how strongly MLX-Gen smooths the source image before SeedVR2 conditions on it. At 0.0, the model receives the source at full preprocessed detail. At higher values, MLX-Gen temporarily downsamples the conditioning image and scales it back to the target size before generation; this suppresses source grain, JPEG texture, and small sensor noise that SeedVR2 might otherwise reconstruct as detail. Use 0.0 for clean sources and fine detail preservation, try 0.25 to 0.5 for noisy or compressed sources, and reserve higher values for sources where a smoother, less faithful reconstruction is acceptable.

Use --vae-tiling only for image runs when you also want tiled VAE encoding, or when you want the same tiled path even for smaller outputs. Large image outputs automatically use tiled VAE decode even without this flag. Video restore rejects --vae-tiling; use --low-ram and chunking there.

Steps for Flat or Dark Content

SeedVR2 is a one-step restoration model. On content dominated by smooth gradients or darkness — night scenes, astrophotography, fog, studio backdrops — the single-step estimate retains a small amount of the sampling noise, which decodes as a faint, regular mesh-like texture aligned to an 8-pixel grid, together with a loss of the faintest real detail. On detail-rich content the same residue is fully masked, and extra steps instead begin to synthesize texture that is not in the source (measured on portrait, super-resolution, and landscape content), so no fixed step count is right for every image.

By default --steps is therefore automatic: MLX-Gen runs the official single step, measures the 8-pixel lattice signature of the decoded output against the source, and only when the artifact is actually present re-runs the restoration at 4 steps (a few extra seconds on a ~1500px image). The metadata sidecar records the decision (steps_mode: auto or auto-refined, with the measured one_step_residue_pct). Passing an explicit --steps 1-4 forces a fixed count and skips the measurement.

The 4-step refinement removes the regular mesh below the model's own reconstruction floor and retains faint real structure (dim stars, nebular wisps) noticeably better, replacing the pattern with irregular film-like grain. Content that far outside SeedVR2's training distribution keeps some synthesized micro-texture at any step count — for archival astrophotography a dedicated astronomical denoiser remains the better tool, while SeedVR2 is at its best restoring compressed, blurred, or low-resolution photographic and video content. --steps applies to image inputs only; video restoration always uses the official one-step path.
